The ESI SC-Series has been developed to solve the current limitations
of autosamplers available to the analyst. Dual flowing rinse station
allows for the use of two different rinse solutions ensuring fast
wash-out of sample and minimal blank contamination. The
sample probe has no guide, thus eliminating a major cause of cross
contamination between samples.
Rapid, Accurate, Clean and Cost-Effective
The Linear/Polar motion - gives rapid sample changeover.
Auto zero feature after each sample ensures no missed vials.
Ultraclean dual-flowing rinse station does not use a peristaltic pump, ensuring no contamination from tubing.
Contamination from external sources eliminated with the optional HEPA filter cabinet.
No probe guide - eliminates a major cause of cross contamination.
Prices range from CHF 8500,- to CHF 15000,-.
Inert, Flexible and User Friendly
All fluoropolymer sample flow path construction - corrosion resistance.
All electrical components are encapsulation-sealed.
No metal or mechanical parts move over the samples vials.
Simple user set-up.
Multiple rack sizes can be utilized, for maximum flexibility.
Unique Features of the SC-Series Autosamplers
Unsurpassed Capacity
Maximum sample space made available on the sample platform
- up to 1260 samples in the case of the SC-14 ...
Smallest footprint / sample.
Dual Rinse Station
Allows the use of 2 rinse solutions.
Mimics best manual procedure.
Reduces contamination of blank solutions.
Ultra clean option.
-
Uses pressurized containers to supply rinse solutions.
-
No Contamination from Peristaltic Pump tubing.
Rapid
Simultaneous Linear / Polar motion ensures rapid movement between samples.
Sample to Rinse time ~3secs.
X-Y-Z speed user controllable.
Carriage is easily accessible for simple repair.
No Cross Contamination
Teflon-encapsulated carbon fibre sample arm & probe.
No probe guide, eliminates a major cause of sample cross contamination.
No metal or mechanical parts move over the sample platform.
SC-14 / SC-14T High Capacity Autosampler
The SC-14 provides unsurpassed sample capacity to ensure the longest
unattended operation for overnight runs. It can hold up to 14 racks of
Rack Type A or 24 racks of Rack Type B.
The SC-14 autosampler is available either as a bench-top unit or as a mobile autosampler with
integrated cart.
| Feature |
Benefit |
| High Capacity |
Unattended overnight runs |
| Linear / Polar Motion |
Faster Sampling |
| No Probe Guide |
Low Contamination |
| Mobile (option) |
Samples can be loaded in preparation area |
SC-2 High Purity Autosampler
The SC-2 provides a full-featured autosampler with a small footprint,
making it ideal for labs with minimal bench space. It can hold up to 2 Rack Type A
or 4 Rack Type B.
| Feature |
Benefit |
| Large / Small Vials accommodated |
All samples analyzed in a single run |
| Mechanism below sample tray |
Low contamination |
| No Probe Guide |
Low Contamination |
| Dual rinse station |
Mimics best manual procedure |
SC-E2 Integrated Autosampler
The first of its kind to combine an autosampler with a sample tray mounted to the Element
2 ICP-MS, making a convenient interface ideal for either self-aspirating or pumping liquid samples.
| Feature |
Benefit |
| Large / Small Vials accommodated |
All samples analyzed in a single run |
| Mechanism below sample tray |
Low contamination |
| No Probe Guide |
Low Contamination |
| Dual rinse station |
Mimics best manual procedure |
| Fully Integrated with Element2 |
Easy maintenance &
fast rinse-out |
Options Available
Dual Rinse Station:
- Peristaltic Pump under the SC-14T control allowing for Optimum Rinsing
- Pressurized Cleaning System, giving the lowest possible Rinse Contamination.
Mobile Station, SC-14 can be incorporated in a trolley for greater flexibility.
Clean Enclosure:
- HEPA filter enclosure ensures no contamination from the laboratory atmosphere.
- Protective dust cover.
F.A.S.T. FIA System, rapid analysis unit which reduces wash-in/wash-out times dramatically improving sample turnaround time.
Traveling Rinse, mobile rinse station which reduces sample to sample time travel time.
Encoder, allowing direct reading of probe location at all times.
Rack Type:
- SupaTrays
- Bel-Art(Cetac)
- ESI Micro Racks
- Microtitre Plates
Power 100-240VAC � 10%, 50-60 Hz
Standard Positions: 10
Rinse Positions: 2
Speed (Sample to Rinse): ~3s
Communications
- RS-232 with USB and IEEE-488 options.
- 3 External Switches In/Out
- 3 Drive Switches In/Out
Software compatible with most ICP-AES / MS systems, please contact us for confirmation of your ICP Type.
|
|
|

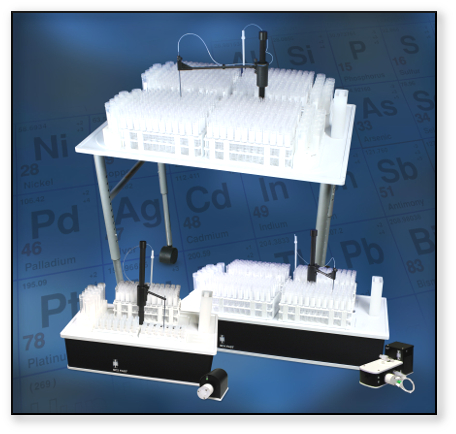

| SC-E2 Integrated Autosampler |
|
|
SC-2 Ultra Clean Autosampler
|
|
|
|
SC-14 High Capacity Autosampler
|
|
|
sample #1 of SC2 rack plan
|
|
|
sample #2 of SC2 rack plan
|
|
|
sample #3 of SC2 rack plan
|
|
|
sample #1 of SC14 rack plan
|
|
|
sample #2 of SC14 rack plan
|
|
|
sample #3 of SC14 rack plan
|
|
